PMRX系列吸熱式氣體發生器
PMRX-Series Endothermic Generator
吸熱式氣體，可用于低碳鋼的滲碳和中碳鋼保護氣氛．此種氣氛可用于光亮退火，正火和淬火．
The endothermic gas atmosphere, when enriched with natural gas, is suitable for gas carburizing and carbon restoration of the low and medium carbon steels. The atmosphere, as generated, may be used for clean annealing, normalizing and hardening of all carbon steels.

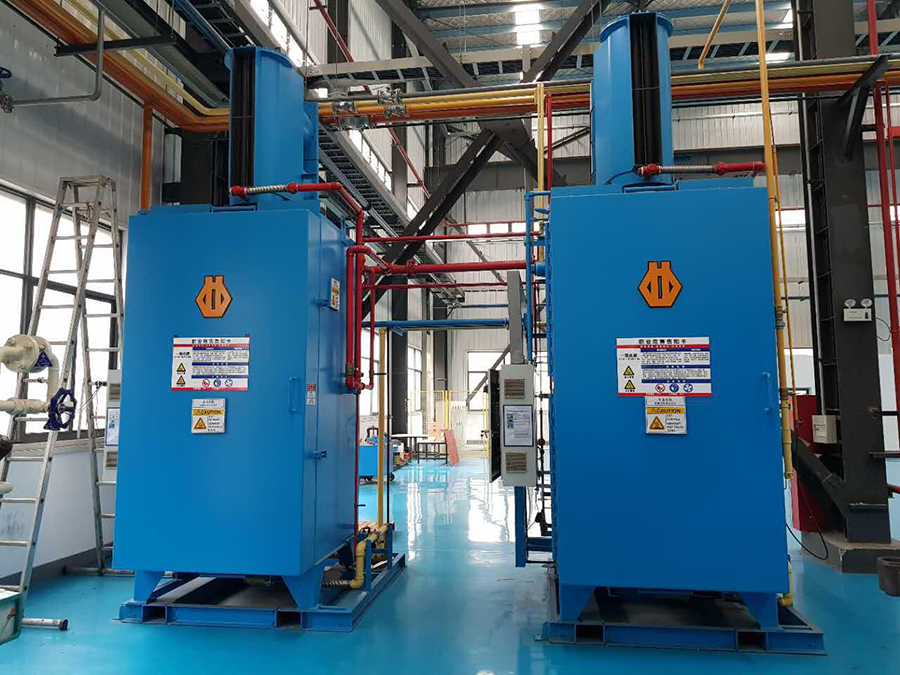

寶華威PMRX系列模塊化吸熱式氣體發生器，采用模塊化設計，產品系列由PMRX-50，PMRX-100，PMRX-200，PMRX-300等組成，額定產氣量分別為50/100/200/300立方每小時。根據配置及產氣量需求，設備由一根或多根反應管垂直安裝在獨立發生器內。反應氣體是通過一套空氣/燃?xì)猓ㄌ烊粴猓┗旌舷到y(tǒng)按一定比例混合后的一種混合氣體，此混合氣體與反應管內的催化劑反應，產生如下成分組成的吸熱式氣體：
PowerMax “PMRX Series” modular design endothermic generators category are consisting of PMRX-50/PMRX-100/PMRX-200/PMRX-300 configurations, with corresponding endo gas output capacity at 50M3/H, 100M3/H/200M3/H individual module 100 m3/hour. According to output capacity requirement, the modular contains one to three vertical reaction retorts mounted in a rectangular designed and gas/electrical heating chamber. The gas atmosphere is generated by the endothermic reaction of an air/gas mixture in an externally heated retort containing a reaction catalyst. The approximate analysis of the resultant gas is as follows:
CO
CO2
H2
CH4
N2
19.8%
0.2%
39.6%
0.1%
40.3%
設備型號
PMRX50
PMRX100
PMRX200
PMRX300
加熱方式
G
E
設備重量
3000Kg
3500Kg
6000Kg
7000Kg
9000Kg
10500Kg
外部尺寸
2*2.2*4.8 (M)
4*2.2*4.8 (M)
6*2.2*4.8 (M)
產氣能力
50m3/h
100m3/h
200m3/h
300m3/h
燃?xì)庀?/span>
15m3/h
10 m3/h
25m3/h
20 m3/h
40 m3/h
75m3/h
60m3/h
NG入口壓力
35-100kpa
燃?xì)饨缑?/span>
1-1/2”
2”
裝機功率
8Kw
68Kw
14Kw
134Kw
20Kw
200Kw
冷卻能力
20000m3/h
40000m3/h
60000m3/h
產氣溫度
40-60℃
產氣界面
3”
產氣壓力
5kpa
PMRX 產品特征 PMRX Features
· 305 mm (12”) thick energy efficient ceramic fiber insulation (Gas-fired)
· 305mm(12”)厚的陶瓷保溫棉 (燃?xì)饧訜?
· “Hinged” type combustion chamber door:
· “鏈條”式爐門
· Easy retort removal from hinged door opening
· 反應管能輕易移出
· Eliminates removal of retort from the top
· 無需從爐頂移出反應管
· Eliminates tall clearance height requirements
· 無需太高空間
· Eliminates overhead retort removal equipment
· 無需移出爐頂
· Easy for retort, burner and refractory inspection
· 反應管易于安裝，并且可方便檢查保溫
· Natural gas heating system:
· 燃?xì)饧訜嵯到y(tǒng)
· Optional electrical heating system
· 電加熱可選項
· Reliable pressure control
· 穩定的壓力控制系統
· Specially-designed EndoInjector? system
· 美國專利混合器系統
· High efficiency air-cooled heat exchanger
· 高效空冷熱交換器
· One (1) dew point indicator easily alerts operator to schedule retort burn-off
· 一個露點指示器，操作員可按照計劃燒碳
· Easy retort burn-off system
· 便捷可靠的反應管燒碳系統
· Gas heating or optional Electrical heating system
· 加熱方式燃?xì)夂碗娍蛇x
· Backup retort as option, easy switch over, uninterrupted gas making process
· 反應罐一用一備可選方案，自由切換，實現不間斷產氣輸出
Endoinjector 混合系統 EndoInjector System
ENDOINJECTOR混合系統設計精密，用于控制發生爐在混合空氣和燃?xì)獗嚷实木_性。由國外合作研發利用電子流量測量和精確燃?xì)鈱?dǎo)入閥以持續性的導入氣體進行混合，以此產生高質量的吸熱性氣體發生氣。

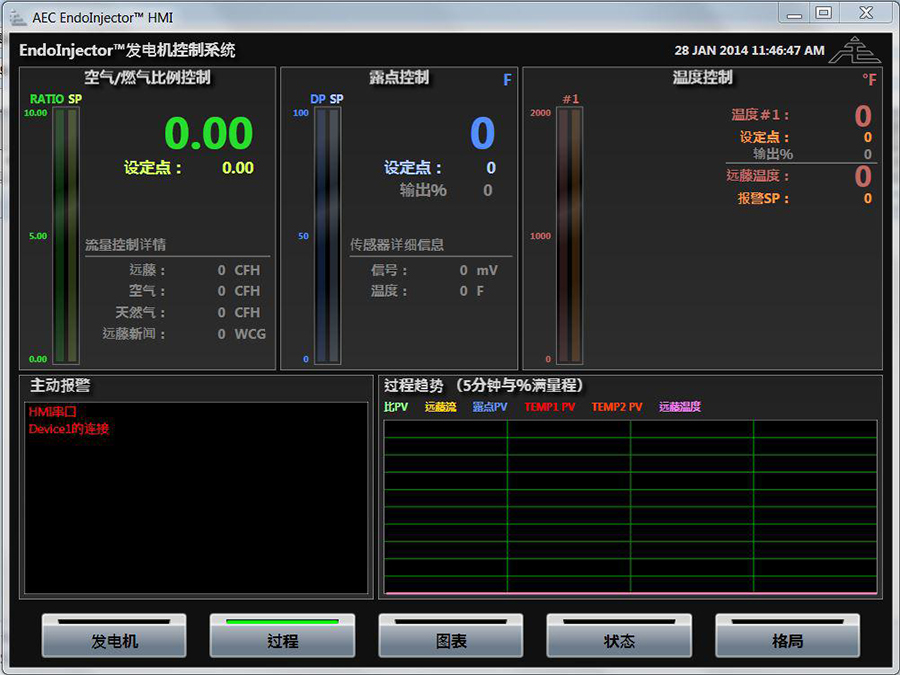

燃?xì)饣旌掀鲹碛凶钕冗M(jìn)的技術，帶有鼓風機的設計，使反應管得到最高的效用。實時監控軟件連接時，根據實際用氣需求量實時計算精確輸出，實現發生器產氣量自動調節，節能減排。

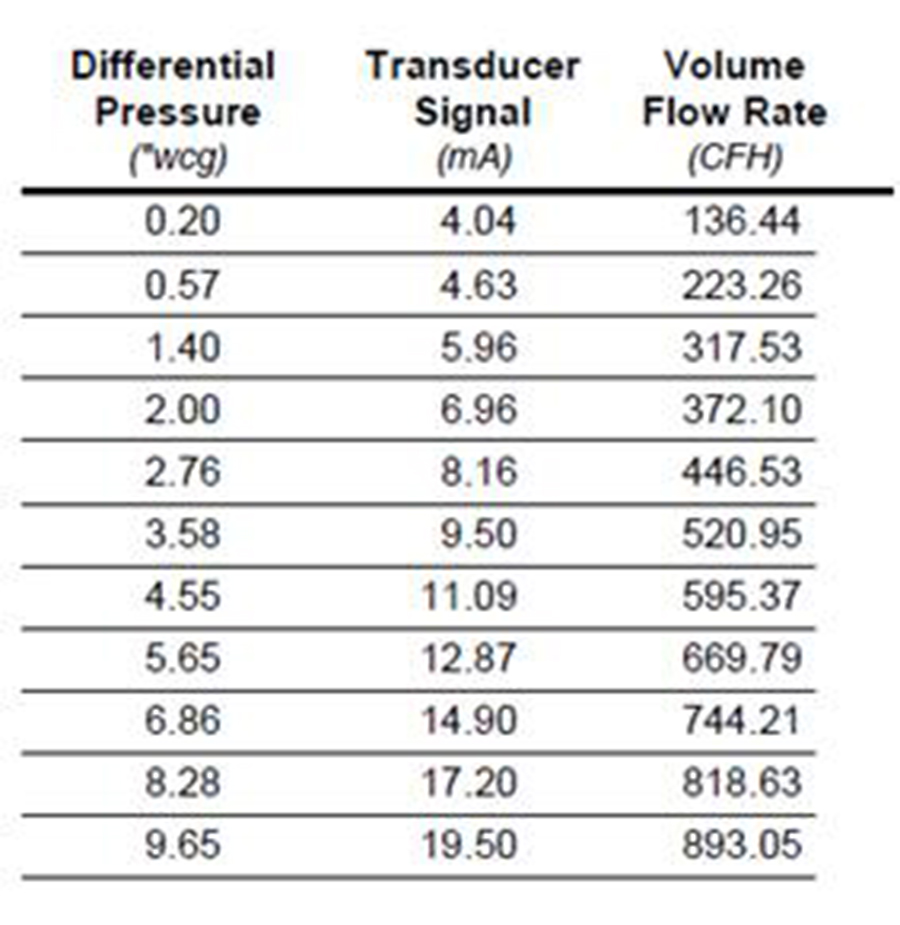

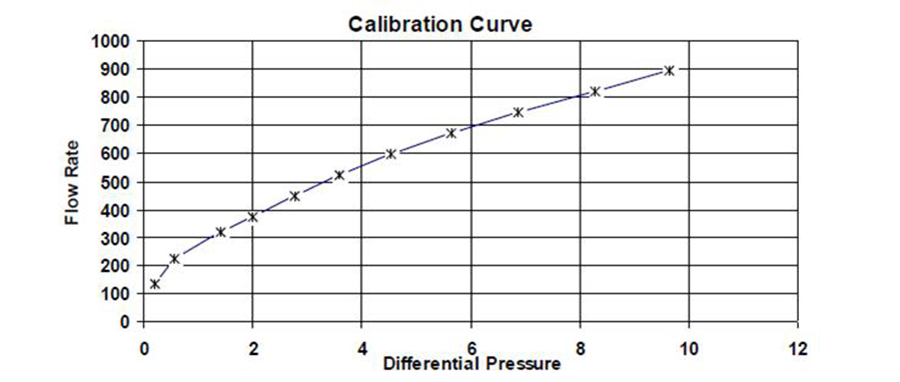

The EndoInjector is a precision gas mixing system designed specifically to provide an accurately controlled mixture of air and gas for endothermic gas generators. The system includes the Control-Carb gas control system designed by Atmosphere Engineering to utilize electronic flow measurement and precision gas injection valves to constantly provide the ideal gas mixture for high quality endothermic gas generation.
The EndoInjector incorporates the latest technology in regenerative blower design that is capable of significant turndown for multi-retort generators. When combined with the precise TrueTrim software, the EndoInjector delivers flow on demand throughout the working range of any generator down to 20% of rated capacity. This feature eliminates endothermic gas waste during production while maintaining the precise gas mixture required.
